The Zauner Elektronik Hubert Pressure Controller

This is a sneak preview of the Zauner Elektronik Hubert Pressure Controller.

Description:

Hubert is a small but powerful device to use with your modular synthesizer. On each hand side there is one force sensing resistor that turns applied pressure into a steady CV output.

Each channel has three outputs: CV Out, Inverted CV Out and Gate out. Each side is capable of holding the current voltage on CV Out, whereas the inverted CV appears on Inverted CV Out. If a CV is held in the CV Out, you still can use the inverted out, even switching from positive to negative voltage as often as you want without disturbing the held CV output.

In addition each of the two channels fires a gate signal every time pressure is applied to the pressure pad. The CV can go from 0V to +/- 8V and can be controlled in sensitivity.

Note: The Hubert controller is still in development. The actual layout of the finished controller will be slightly different.

via osterchrisi:

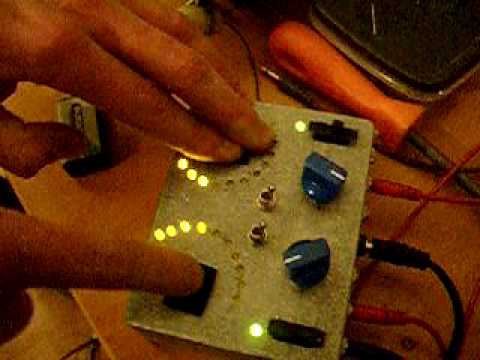

1st perfomance EVER on the already infamous pressure controller by Zauner Elektronik (Berlin, Germany) called “Hubert”.

The 1st channel controls the wavetable of the WMD Geiger Counter, the second one the cutoff frequency of the Doepfer A-120 Low Pass Filter. No more gear involved.
