Innerclock Systems Eurorack Modular Lab Series

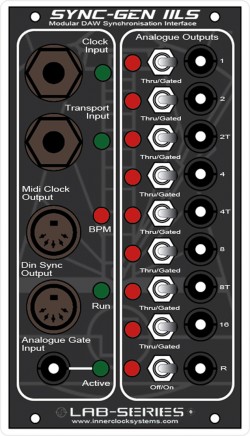

Innerclock Systems has introduced a new Eurorack module, the Sync-Gen IILS Modular DAW Synchronisation Interface, designed to let you sync any modular system to any DAW app.

Features

  • Sample Accurate Rhythmic Synchronization between any DAW and any Modular Synthesizer system
  • Zero Latency with Precision Sync-Offset adjust via Sync-Gen II
  • Works with any multi-channel DAW audio interface – no DC Offset hardware or cable modification required
  • Includes Sync-Gen II software – AU/VST/RTAS
  • Simultaneous Phase-Locked Outputs – Midi Clock/Din Sync and All Trigger Out Divisions
  • 20 microsecond Pulse Edge Detection/Sync Conversion Timing Core
  • External Analogue Gate Input allows ‘playable’ output pulses while maintaining precise DAW Tempo-Grid synchronisation

Detailed specs below.

The Sync-Gen IILS is expected to be available in December. Pricing is to be announced.

Inputs

  • Clock Input – TRS 1/4? [Sync-Gen II DAW Audio]
  • Transport Input – TRS 1/4? [Sync-Gen II DAW Audio]
  • Gate Input – [+5VDC – Normalled High]

Outputs

  • Reset Output – [20ms/+5VDC]
  • Simultaneous Trigger Output Divisions – 1/2/2T/4/4T/8/8T/16 [20ms/+5VDC]
  • Midi Clock Output – 24 PPQ with Programmable Re-Start, Division Rate and Swing via Sync-Gen II software
  • Din Sync Output – 24 PPQ with Programmable Re-Start, Division Rate and Swing via Sync-Gen II software

Electrical Specifications

  • Clock Input Impedance – 10k
  • Clock Input Threshold Range – 350mV to 1.40V [500mV Optimum]
  • Transport Input Impedance – 10k
  • Transport Input Threshold Range – 350mV to 1.40V [500mV Optimum]
  • Trigger Outputs – +5VDC/20ms Pulse Width * Power – +/-12V or +/-15V or +/-9V [Eurorack and Frac sockets fitted]

Mechanical Specifications

  • Format – Eurorack
