Bastl Instruments Modular Knit Rider Sequencer Demo

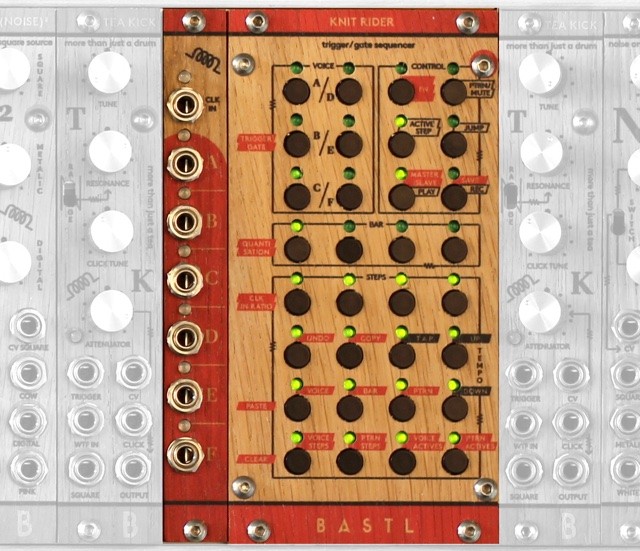

knit-rider-faceplate

This video, via Bastl Instruments, is a demo of the new Knit Rider sequencer, part of their new line of Bastl Eurorack modules:

Knit Rider is versatile 6-voice trigger sequencer.

Features:

  • master or slave tempo – selectable slave tempo ratio
  • 6 voices with individual outputs – each can be set as trigger or gate
  • pattern has 4 bars each has 16 steps
  • each step has 4 sub steps (total 256 steps/pattern)
  • 64 patterns
  • simple and fast real time editing
  • record function with quantisation settings
  • play / stop button (for sync in slave mode)
  • mute function for each voice
  • jump function (repeats certain step)
  • adjustable master tempo by tap or up, down (by 2 bpm)
  • active step – sets how many steps there are for each voice or for all instruments  – possible to deactivate individual steps
  • saves everything on microSD card (accessible from the back side)
  • copy and paste functions for fast workflow (paste for voice, bar or pattern)
  • clear function (for one voice, all voices, active steps in one voice, all active steps)
  • undo function takes you back to the moment when you saved last time
  • 5 volt outputs
  • handmade in Brno, Czech republic
  • front panel from oak wood, handmade custom knobs
  • breakout for FTDi USB adaptor for hacking, opensource firmware (see github)

Knit Rider is priced at 230 Euro. See the Bastl site for details.
