Bitbox Touch Screen Eurorack Sampler Module

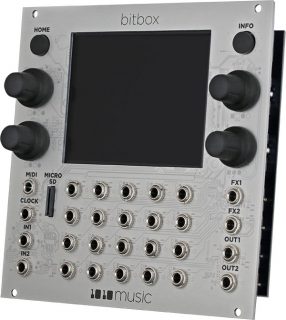

1010music-bitbox-side1010music has introduced bitbox, a new 26HP Eurorack sampler that lets you play back up to 16 simultaneous samples and puts CD-quality audio recording into your modular.

Recordings can be locked to the patch clock and recorded to bar/sync boundaries. For playback, you can launch any combination of up to 16 audio clips, via a touch screen grid interface. Creative options include triggering samples as loops or one-shots via MIDI, CV Gate and modulation.

Use modulation inputs to launch rows of up to four clips at a time to easily create complex, new layers of sounds. Save or load up to 12 banks of samples to microSD card, so you can easily recreate your set and/or use the samples and loops in Mac or PC applications. There’s even support for Ableton Live format.


  • Playback of up to 16 simultaneous samples from internal memory or up to 4 directly from microSD.
  • Trigger samples via touch screen, CV gate inputs, or MIDI input
  • Import or export WAV files with your Mac or PC using a microSD card (included)
  • Free samples including beats and other samples by producer Jason Donnelly (DJ Puzzle)
  • 24-bit/48kHz stereo input for high quality recordings, with stereo output and two mono effects sends
  • Stereo or mono recording with the option to synchronize start/stop times to clock inputs with a maximum recording time of up to 4 hours.
  • Multiple clip Launch Modes, including One-Shot, Toggle, Gate, and a Repeat mode to allow quantized retriggering of clips while a key is held or via the touch screen. Normal playback resumes when the key or button is released.
  • Scene Trigger, which plays back an entire row of four clips/loops at once via touch screen or modulation inputs (which can also be assigned to modulate sample start, length, or pitch)
  • Playback can be immediate or synchronized to analog or MIDI clock
  • Control of sample parameters, including start position, length, gain, loop mode, launch quantization and pitch, including pitch modulation via CV input
  • Save/recall up to 12 different banks of samples and their configuration
  • Import bitbox Presets (a 4×4 bank of samples with playback parameters) directly into Ableton Live
  • Accepts TRS MIDI input compatible with Arturia and other products
  • 26 HP Eurorack compatible. +12V: 350mA, -12V: 0mA, 5V: 0mA

Pricing and Availability:

The Bitbox is available now for US $599.95.
